Non-Vented Hydraulic Firing Head - Product No. 30-11

Purpose
The BRICO Hydraulic Firing Head is designed to initiate the perforating system or other pyrotechnic tools at a predetermined value by applying tubing pressure.

The Non-Vented Hydraulic Firing Head can be run in on tubing or coil tubing until the system is on depth. The tubing is filled with fluid or gas, pressured up until the predetermined shear value is reached and the shear pins shear. This fires the initiator causing the gun or accessory to fire. BRICO Hydraulic Firing Heads may be run to operate jet cutters on coil, tubing and drill pipe. This firing head can be run as an alternative or a redundant firing head on the bottom of the guns.

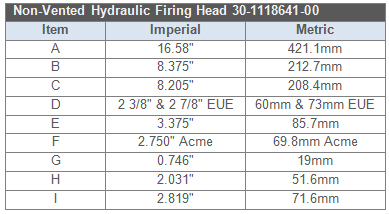

Specifications

....


Click on image for an larger view

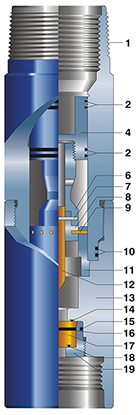

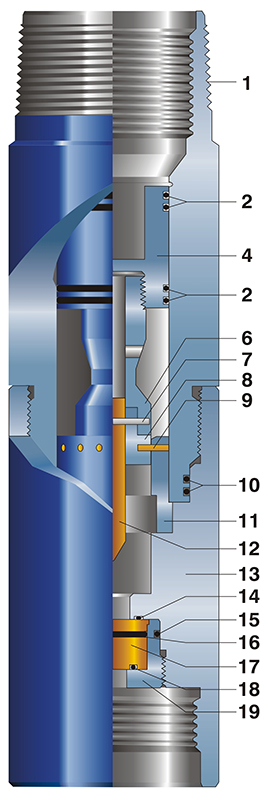

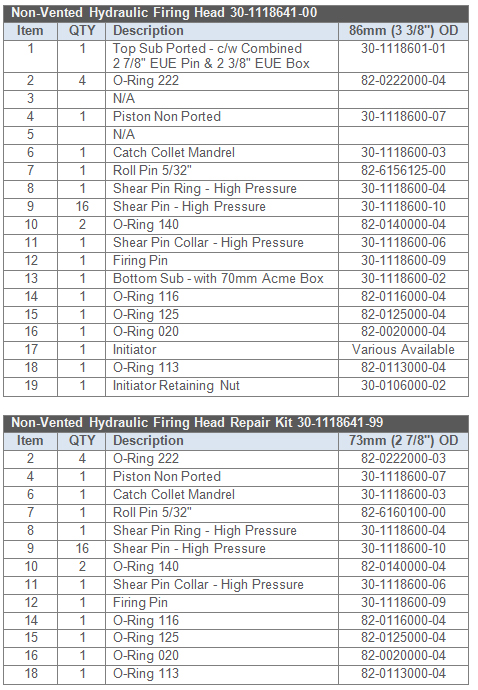

Parts List



Click on image for an larger view

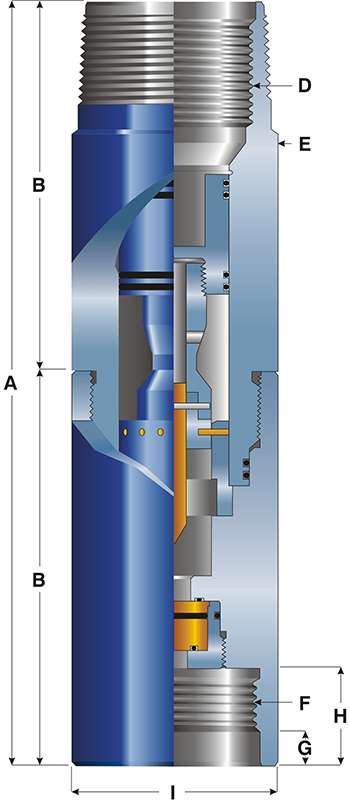

Dimensional Data



Click on image for an larger view


Click here to download .pdf of Non-Vented Hydraulic Firing Head (1mb)
