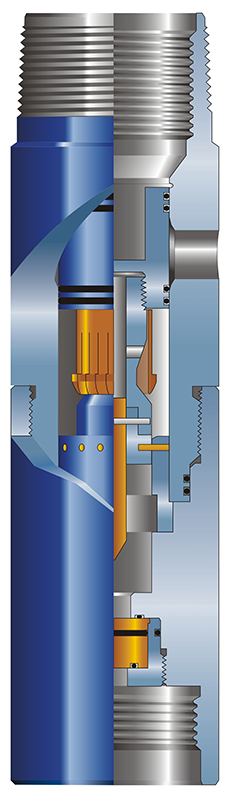

Vented Hydraulic Firing Head - Product No. 30-11

Purpose
The BRICO Hydraulic Firing Head is designed to initiate the perforating system or
other pyrotechnic tools at a predetermined value by applying tubing pressure.
The Vented Hydraulic Firing Head is to be run in on tubing or coil tubing until the
system is on depth. Then the tubing is filled with fluid or gas and pressured up until
the predetermined shear value is reached and the shear pins shear. This fires the
initiator and opens the vent holes.

Specifications

....


Click on image for an larger view

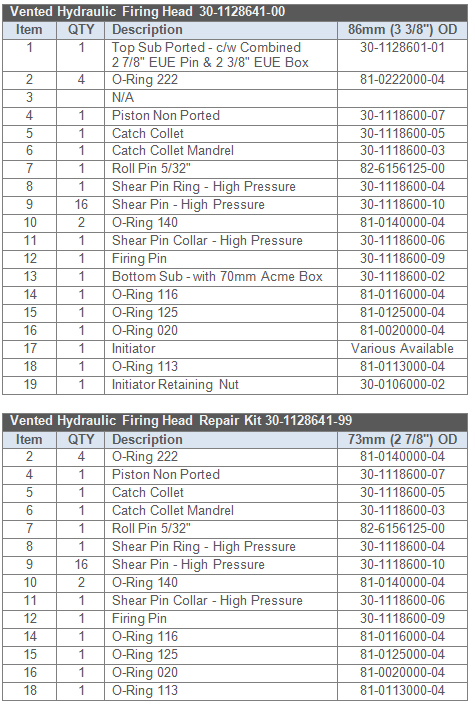

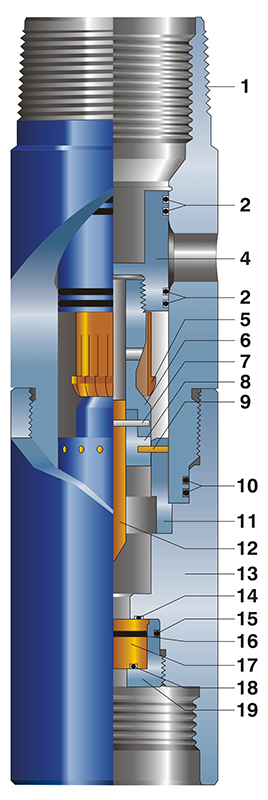

Parts List



Click on image for an larger view

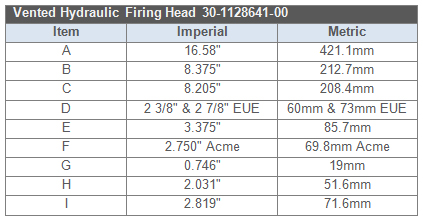

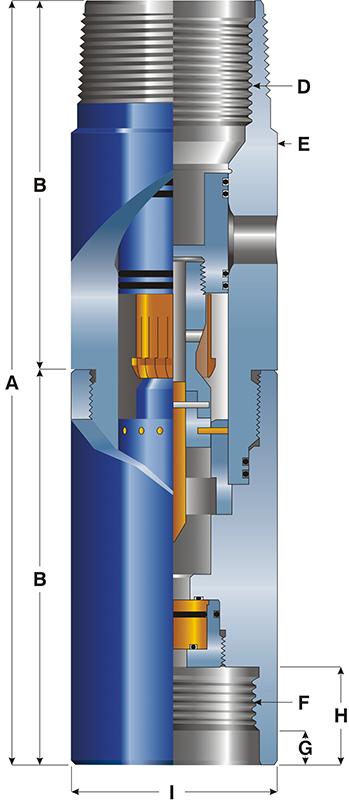

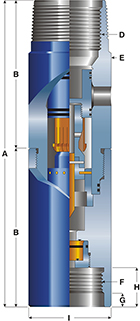

Dimensional Data



Click on image for an larger view


Click here to download .pdf of Vented Hydraulic Firing Head (1mb)
