Purpose
The purpose of the Sinker Bar Roller Tandem Sub is to allow tool strings that are used in highly deviated well bores to be deployed easier. This sub keeps the heavy weight 79mm sinker bars from dragging on the casing creating large amounts of friction.

Operation
The sub is installed between two 79mm sinker bars lifting the string off the casing. Normally this is run in conjunction with a roller system in the Gun and Plug string. There are also Roller Sub systems available for the top and bottom of the sinker bar string.

Features and Benefits

  • Less friction on tool string for pump down operations
  • Easier to install tool string into lubricator
  • Heavy duty wheels reduce wear
  • Easy to service and use universal contact parts

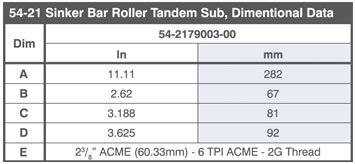

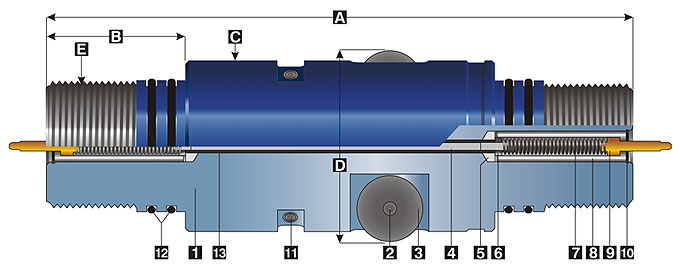

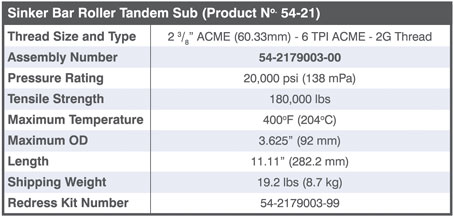

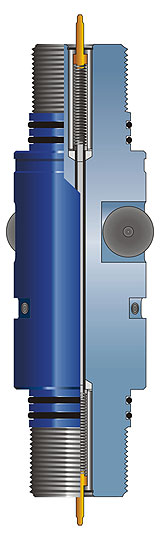

Specifications

....


Click on image for an larger view




Click on image for a large view



Click here to download .pdf of Sinker Bar Roller Tandem Sub (2.3mb)
